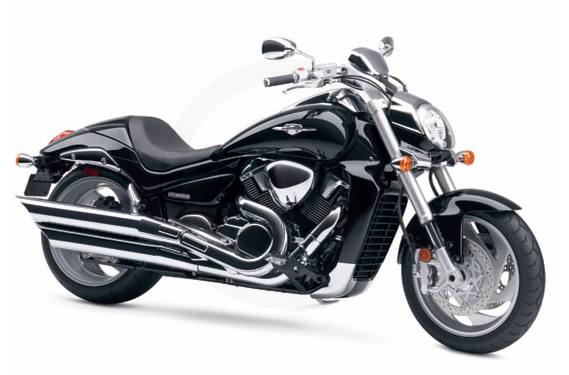

2008 Suzuki Boulevard M109R2
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

In a world of cookie-cutter cruisers, the Boulevard M109R carved out a niche with its own radical cruiser styling. For 2008, Suzuki is taking unrivaled possession of that niche with the new Boulevard M109R2. It's a variation of the original that features a striking and uniquely designed headlight ? matched by stunning performance. Its 1783cc, Suzuki fuel-injected V-twin engine provides massive torque from idle to redline, allowing you to enjoy an incredible blast of acceleration in every gear. The Boulevard M109R2 balances that heart-pounding performance with crisp handling, thanks to a technically advanced chassis, suspension and world-class brakes. The 2008 M109R2, the perfect way to stand out on the Boulevard.

    New Features
    • Aggressive new special edition M109R with a sporty racing stripe, checkerboard background gauge package, clear taillight lens with red LEDs and a stylish textured seat.
    Engine Features
    • 1783cc, 4-valve DOHC, 54 degree, liquid-cooled, fuel injected V-twin engine designed for strong throttle response and quick acceleration
    • Massive 112mm bore and 90.5mm stroke utilizing huge 112mm forged aluminum alloy pistons with short skirts, and cut away sides riding on chrome moly steel connecting rods
    • Unique new two-stage cam drive system creates a compact cylinder head design and reduces overall engine height and creates a lower center of gravity
    • Each bore is lined with Suzuki's race proven SCEM (Suzuki Composite Electrochemical Material) for optimum heat transfer, tighter piston-to-cylinder clearances and reduced weight
    • A compact dry sump lubrication system SASS (Suzuki Advanced Sump System) provides reduced engine height, a lower crankshaft position and lower center of gravity
    • Five speed transmission features carefully selected gear ratios for comfortable cruising in a variety of riding situations
    • Three piece airbox uses dual intakes with 9.5 liters of internal volume working through a pleated fabric air cleaner element
    • The 2-into1-into2 stainless steel chromed exhaust system features Suzuki's digitally controlled SET (Suzuki Exhaust Tuning) system for optimum engine performance and powerful v-twin sound
    • Electronic fuel injection system features the Suzuki Dual Throttle Valve system (SDTV) with 56mm throttle bodies - maintains optimum air velocity for smooth low-to-mid range throttle response
    • Idle Speed Control (ISC) system improves cold starting and stabilizes engine idle speed in various conditions
    • Dual spark plug per cylinder ignition system is controlled by the powerful 32 bit ECM for improved combustion efficiency and reduced exhaust emissions
    Chassis Features
    • High-tensile double cradle steel frame is built to comfortably handle all the power and torque while delivering agile handling and a plush smooth ride
    • Spiral spoke cast aluminum alloy wheels measure a 3.50 x 18 inch up front and a massive 8.50 x 18 inch rear tire wearing a huge 240mm rear Dunlop radial tire
    • Front brake system includes radial mounted four piston front calipers and 310mm front brake rotors. Rear brake system includes a dual piston caliper and 275mm rear disc
    • A sleek wide fuel tank with 5.1 gallon fuel capacity that flows into integrated side covers, a comfortable low seat and stylish radiator cowl.
    • A handlebar mounted digital tachometer and LED indicator lights flow nicely with the tank mounted analog speedometer and LCD odometer, dual tripmeters, fuel gauge and clock
    • Inverted cartridge forks with 46mm stanchion tubes proved an aggressive front end look with 5.12 inches of wheel travel
    • A cast aluminum alloy swingarm works with a progressive shock linkage and a preload adjustable single rear shock delivering 4.66 inches of wheel travel working through a shaft drive system
    • Single seat cover is standard equipment and emphasizes the beautiful flowing lines of the M109R
    Specifications
    • Engine: 1783cc, four-stroke, liquid-cooled, V-twin, DOHC, 4-valves
    • Bore Stroke: 112.0mm x 90.5mm
    • Compression Ratio: 10.5:1
    • Fuel System: Fuel injection
    • Lubrication: Semi-Dry Sump
    • Ignition: Digital/transistorized
    • Transmission: 5-speed
    • Final Drive: Shaft
    • Overall Length: 2450mm (96.5 in.)
    • Overall Width: 875mm (34.4 in.)
    • Overall Height: 1185mm (46.7 in.)
    • Seat Height: 705mm (27.8 in.)
    • Ground Clearance: 130mm (5.1 in.)
    • Wheelbase: 1710mm (67.3 in.)
    • Dry Weight: 319 kg (703 lbs.)
    • Suspension Front: Inverted telescopic, coil spring, oil damped
    • Suspension Rear: Link type, coil spring, oil damped, 7 way adjustable spring pre-load
    • Brakes Front: Dual hydraulic disc
    • Brakes Rear: Single hydraulic disc
    • Tires Front: 130/70R18 M/C 63V
    • Tires Rear: 240/40R18 M/C 79V
    • Fuel Tank Capacity: 19.5 liter (5.2 gal.)
    • Color: Black, Gray
    NOTES:

    Specifications and features are subject to change.


    Specifications

    Engine
    Engine Type Four-stroke, V-twin, DOHC, 4-valves
    Displacement 1783 cc
    Bore and Stroke 112.0 mm x 90.5 mm
    Cooling Liquid-cooled
    Compression Ratio 10.5:1
    Fuel System Fuel injection
    Ignition Digital/transistorized
    Chassis
    Front Suspension Inverted telescopic, coil spring, oil damped
    Front Brakes Dual hydraulic disc
    Front Tire 130/70R18 M/C 63V
    Rear Suspension Link type, coil spring, oil damped, 7 way adjustable spring pre-load
    Rear Brakes Single hydraulic disc
    Rear Tire 240/40R18 M/C 79V
    Dimensions
    Dry Weight 703 lbs. (319 kg)
    Fuel Capacity 5.2 gal. (19.5 l)
    Wheelbase 67.3 in. (1710 mm)
    Seat Height 27.8 in. (705 mm)
    Transmission
    Transmission 5-speed
    Final Drive Shaft
    General
    Speedometer Analog
    Tachometer Digital
    Odometer LCD
    Colors Black, Gray
    Warranty 12 month unlimited mileage limited warranty

    Compare Models

    		 Print








    Year 2008
    Manufacturer Suzuki
    Model Boulevard M109R2
    Style Cruiser
    MSRP* $12,699.00
    Chassis
    Front Suspension Inverted telescopic, coil spring, oil damped
    Front Brakes Dual hydraulic disc
    Front Tire 130/70R18 M/C 63V
    Rear Suspension Link type, coil spring, oil damped, 7 way adjustable spring pre-load
    Rear Brakes Single hydraulic disc
    Rear Tire 240/40R18 M/C 79V
    Dimensions
    Dry Weight 703 lbs. (319 kg)
    Fuel Capacity 5.2 gal. (19.5 l)
    Wheelbase 67.3 in. (1710 mm)
    MPG
    Seat Height 27.8 in. (705 mm)
    Trail
    Rake
    Engine
    Engine Type Four-stroke, V-twin, DOHC, 4-valves
    Displacement 1783 cc
    Bore and Stroke 112.0 mm x 90.5 mm
    Cooling Liquid-cooled
    Compression Ratio 10.5:1
    Fuel System Fuel injection
    Ignition Digital/transistorized
    General
    Speedometer Analog
    Tachometer Digital
    Odometer LCD
    Colors Black, Gray
    Warranty 12 month unlimited mileage limited warranty
    Transmission
    Transmission 5-speed
    Final Drive Shaft

    Current Promotions

    There are currently no promotions available for this product.
